Single Plate Assemblies are a cost-effective alternative to a full hot half which is made possible by the design of the Leak-Proof Manifold System.  They are supplied wired, tested and ready to be mounted to the cavity plate of the mold.  ORYCON SINGLE PLATE ASSEMBLIES can cut delivery times, cut costs and increase shop efficiency by allowing Mold Makers to concentrate on their specialty work.  For customers who prefer to machine their own plates, detailed designs can be supplied as an option.

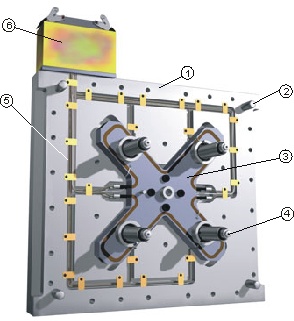

Each SINGLE PLATE

ASSEMBLY includes:

1 - Clamp Plate

2 - Leader Pins

3 - Manifold

4 - Nozzles

5 - Wiring

6 - Mold Junction Box(es)

     with connectors to
     customer's specs

•  Water Testing

•  Electrical Testing

•  Run testing of 3 cycles

   of heating and cooling<br />

   before shipping
